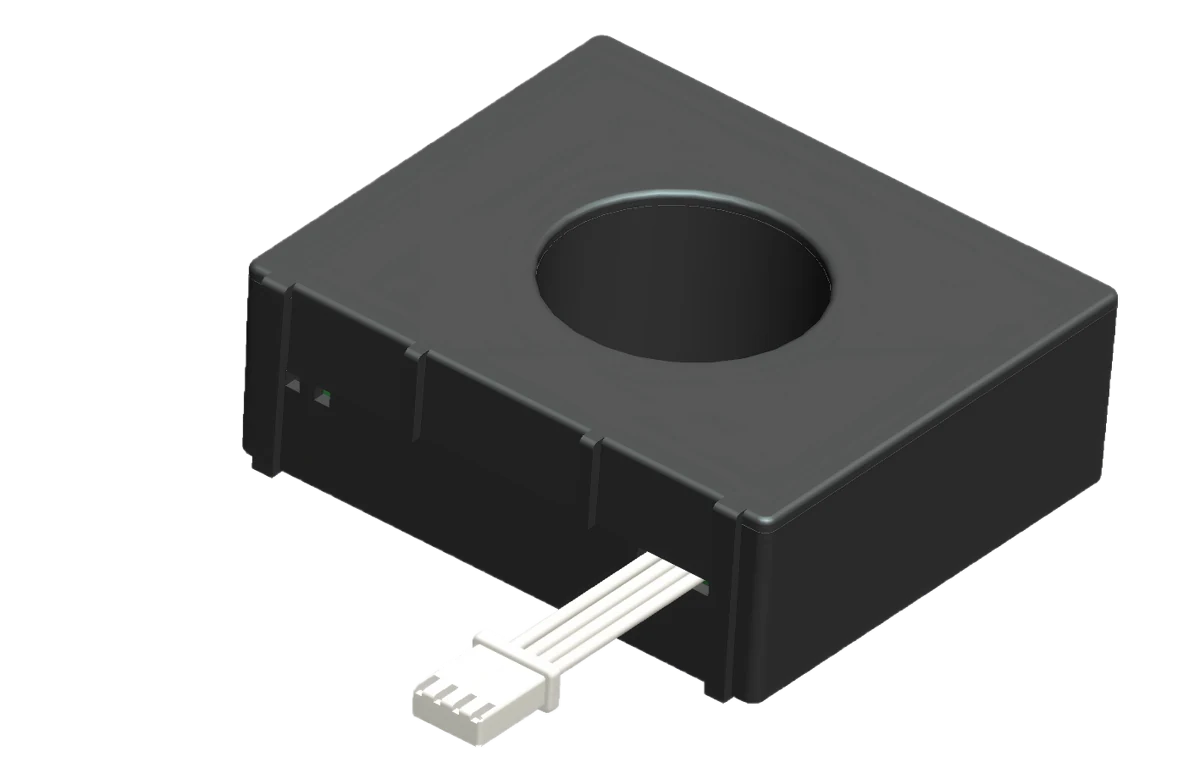

1R20 Series Type A + DC 6mA RCD Sensor
Digital residual current sensor for AC EV charging stations, designed for Type A + DC 6mA detection requirements.
Overview
1R20 Series residual current detection
The 1R20 Series residual current sensors are designed for AC EV charging applications that require Type A + DC 6mA residual current detection. The series provides digital output, built-in self-test, low temperature drift, and strong immunity to interference.
Key Features
Digital output
Built-in self-test function
5V power supply
Low temperature drift
Strong immunity to interference
Typical Specifications
| Supply Voltage | 5V |
|---|---|
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 105°C |
| Startup Time | 800ms max |
| DC Trip Current | 3mA min / 4.5mA typ / 6mA max |
| AC Trip Current @ 50 Hz | 15mA min / 22mA typ / 30mA max |
Applications
When to consider 1R20 Series
Consider 1R20 Series when the charger design needs digital output, built-in self-test function, 5v power supply. It is intended for applications such as ac ev charging stations, mode 3 ev chargers, three-phase 22kw ac charging systems. Before freezing the design, confirm the conductor arrangement, available space, controller interface, target compliance tests, and trip behavior against the datasheet.
Integration and model comparison
EVsense models differ in mechanical format, aperture and conductor routing, transformer integration, and the intended charger platform. Use the specifications above as an initial filter, then compare this model with the complete product range. For a reliable recommendation, send a PCB drawing or space envelope together with rated current, target market, and required sample schedule.
